Continuous Intensive Mixer represents a major breakthrough in mixing technology. Building on the Co-Nele Intensive mixers type CR, its revolutionary design offers unparalleled advantages: continuous processing capacity and independently adjustable mixing intensity. This meets the demanding demands for large-scale, high-quality mixing in a wide range of industries, from mining and building materials to chemicals and lithium batteries.
A continuous intensive mixer rotates the mixing drum simultaneously, simultaneously generating a force that shears the material in the centrifugal agitator. The resulting velocity differential within the complex flow achieves a fine, fine mixing effect, resulting in intense mixing motion, high efficiency, and uniform mixing quality.
Co-Nele continuous intensive mixer consists of three components. These components can be used flexibly when designing your mixing process. A rotating mixing disc conveys the mixture to the mixing tool area. One or more eccentrically arranged mixing tools. The direction of rotation and speed of the mixing tools can be optimally adjusted to suit the application. A bottom/wall scraper provides additional mixing action. It prevents material from clumping on the walls and bottom of the mixer and facilitates unloading after the mixing cycle is complete. Variable speed tool - from low-shear to high-shear mixing.

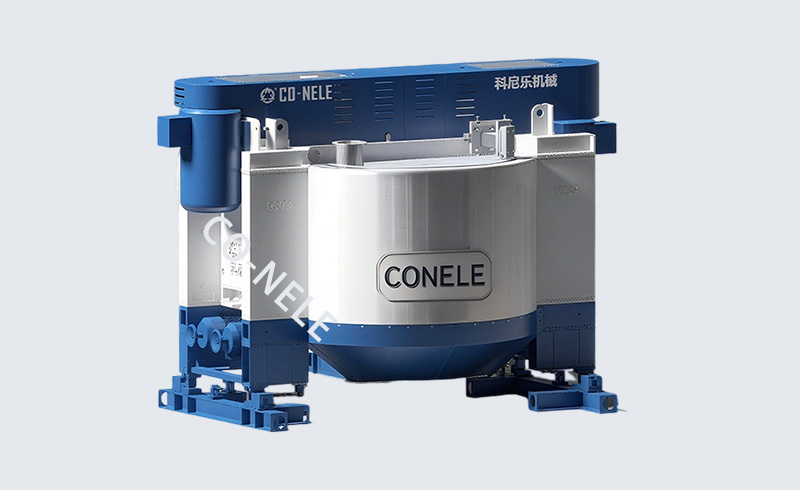

During CO-NELE Continuous Intensive Mixersdischarge, if the volume of the material in the rotary drum has not reached the level meter detection height and the material weight detected by the weighing base assembly has not reached the maximum mixing weight, the self-rotating discharge gate assembly opens at a small angle and rotates during the mixing process. This achieves continuous mixing, reduces the number of unloading steps, and allows for simultaneous mixing and unloading, significantly improving throughput per unit time.
Type | CR15L | CR19L | CR20L | CR24L | CD29L | CD33L | CD40L |
Mixing Capacity(L) | 500-1000 | 1000-1500 | 1500-2000 | 2000-3000 | 4000-6000 | 6000-7000 | 1000-12000 |
Continuous productivity(t/h) | 20-70 | 30-100 | 40-130 | 50-200 | 150-450 | 200-600 | 1000-1400 |
Main rotor power(kW) | 55 | 75 | 90 | 110 | 110+132 | 160+200 | 160*2+200*2 |
The Intensive Mixer Can Mix Materials Uniformly...
