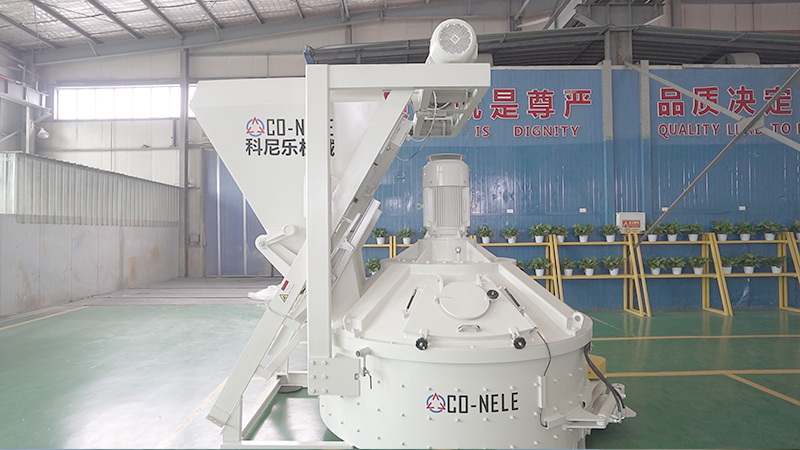

CMP Planetary concrete mixer is widely used in precast concrete, high performance concrete, refractory materials, ceramics and other industries.
Compulsory mixing is realized by composite moves of extruding and overturning driven by rotating planets and blades.

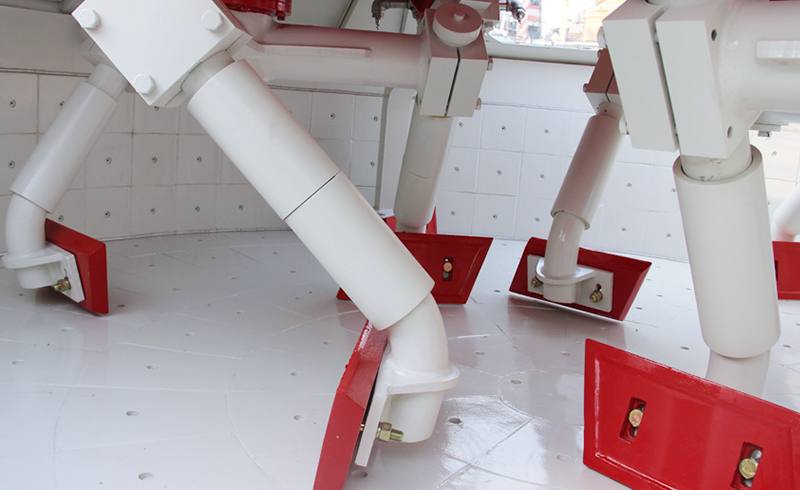

Mixing blades are designed in parallelogram structure(patented), which can be turned 180°for reuse to increase sewice life．Specialized discharge scraper has been designed according to discharge speed in order to increase productivity.

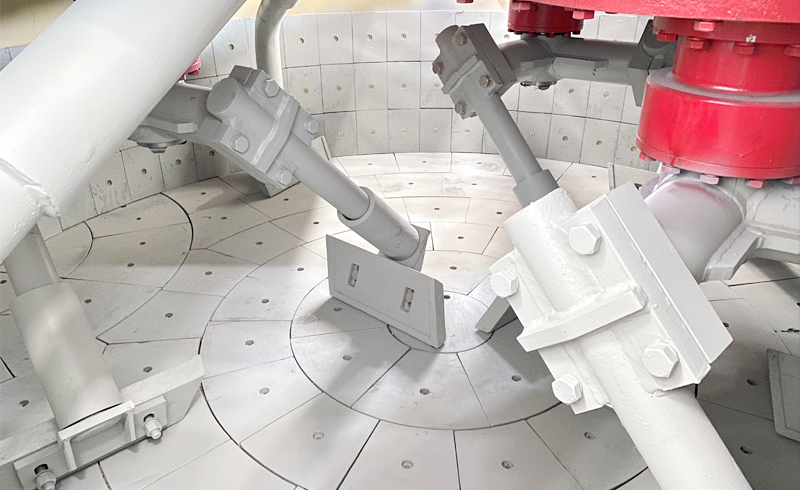

The movement of the material inside the trough is smooth and continuous．the blades track covers the whole bottom of the trough after a cycle．

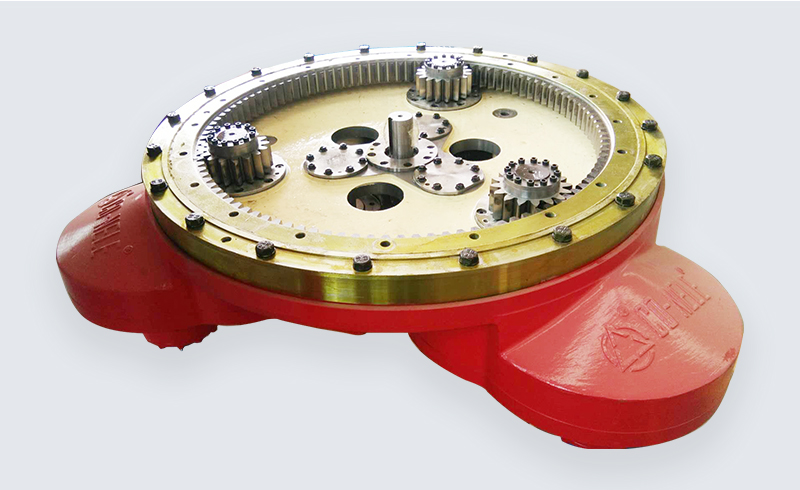

Driving system consists of motor and hardened surface gear which is specialized designed by CO-NELE(patented)．
Flexible coupling and hydraulic coupling(option)connects motor and gearbox.
The gearbox is designed by CO-NELE (completely independent intellectual property rights owned) absorbing European advanced technology. The improvedmodel has lower noise，longer torque and more durable．

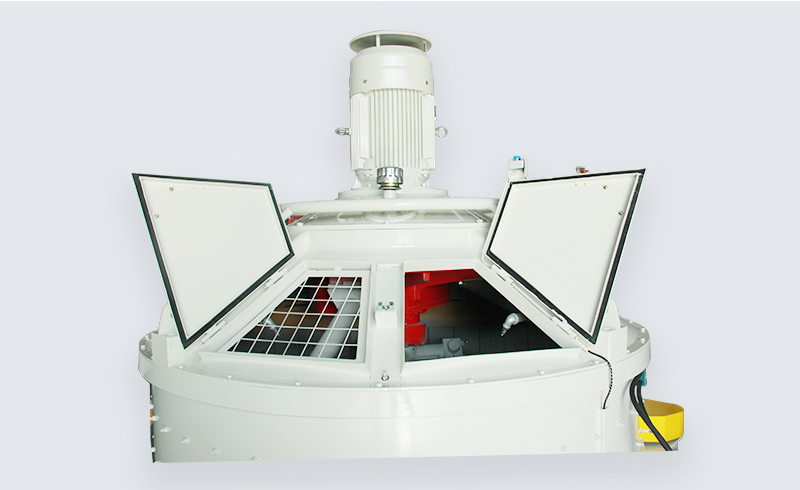

There is an observing port on the maintaining door. You can observe the mixing situation without cutting off power.
In order to improve the security of using the product，reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient．

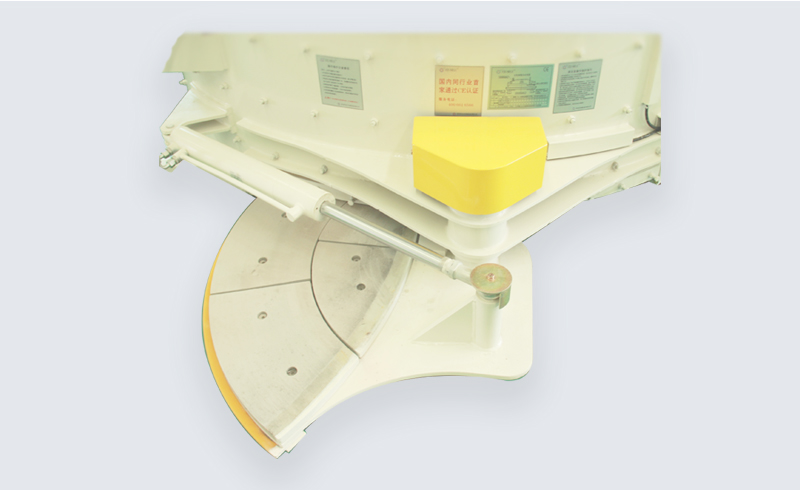

According to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands.
The number of the discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable．
Type | CMP50 | CMP100 | CMP150 | CMP250 | CMP330 | CMP500 | CMP750 | CMP1000 |
Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 |
Input capacity(L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 |
Output weight(Kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 |
Mixing power(Kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 |
Dischar ging power(Kw) | Pneumatic discharge(optional hydraulic) | |||||||
Planet/mixing arm | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | |||
Paddle(nr) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
DIscharging paddle(nr) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Weight(Kw) | 700 | 1100 | 1300 | 1500 | 2000 | 2400 | 3900 | 6200 |
Ligting power(Kw) | - | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 | 11 |
Dimension(LxWxH,MM) | 950x790x1200 | 1670x1460x1450 | 1670x1460x1620 | 1860x1650x1780 | 1870x1870x1855 | 2230x2080x1880 | 2580x2340x2195 | 2890x2602x2220 |
Type | CMP1250 | CMP1500 | CMP2000 | CMP2500 | CMP3000 | CMP4000 | CMP4500 | CMP5000 |
Output capacity(L) | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 | 5000 |
Input capacity(L) | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | 7500 |
Output weight(Kg) | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | 12000 |
Mixing power(Kw) | 45 | 55 | 75 | 90 | 110 | 160 | 200 | 250 |
Dischar ging power(Kw) | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
Planet/mixing arm | 2/4 | 2/4 | 3/6 | 3/6 | 3/9 | 3/9 | 3/9 | 3/9 |
Paddle(nr) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
DIscharging paddle(nr) | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
Weight(Kw) | 6700 | 7700 | 9500 | 11000 | 12000 | 16500 | 17500 | 18500 |
Ligting power(Kw) | 15 | 15 | 22 | 30 | 37 | - | - | - |
Dimension(LxWxH,MM) | 3060x2760x2305 | 3230x2902x2470 | 3625x3230x2630 | 3900x3550x2695 | 3900x3550x2975 | 4560x4150x3105 | 4560x4150x3305 | 4560x4150x3305 |
