co-nele intensive mixer

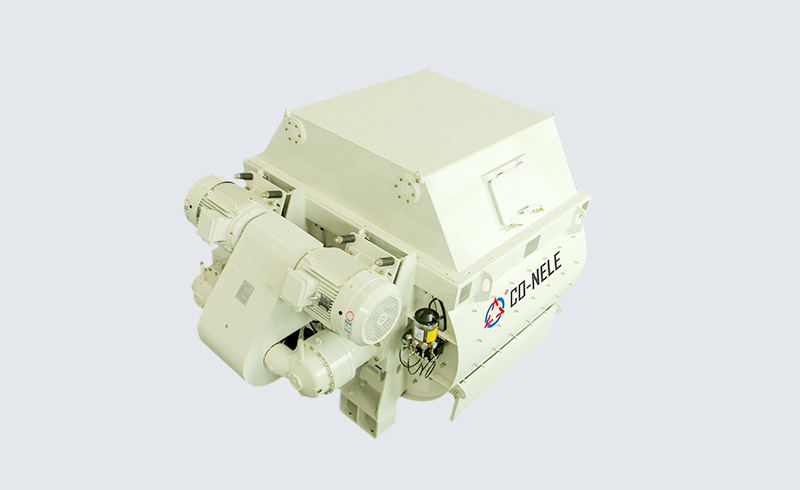

CHS Twin Shaft Concrete Mixer

Category:Twin Shaft Concrete Mixer

CO-NELE CHS Twin Shaft Concrete Mixer using patent design of mixing device can get high material homogeneity,Streamline arms,mixing resistance is small,less likely to hold shaft.

Product Advantages

Twin Shaft Concrete Mixer

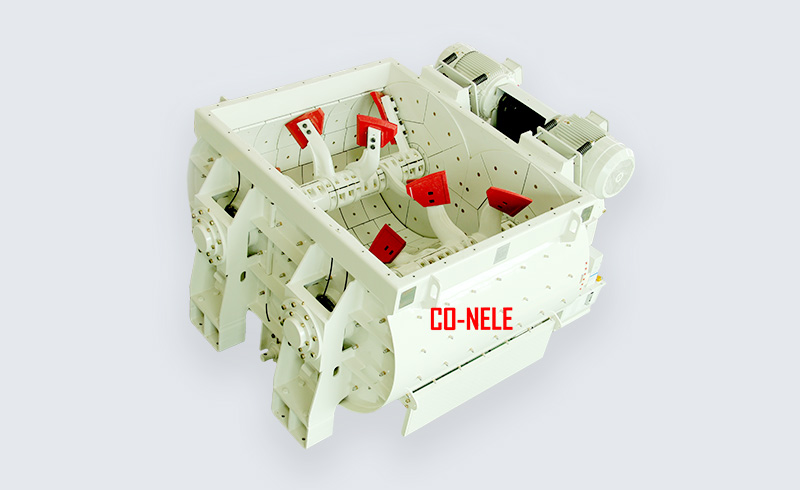

Mixing System

Using patent design of mixing device can get high material homogeneity.   Streamline arms,mixing resistance is small,less likely to hold shaft.

Horizontal shaft concrete mixer sealing device

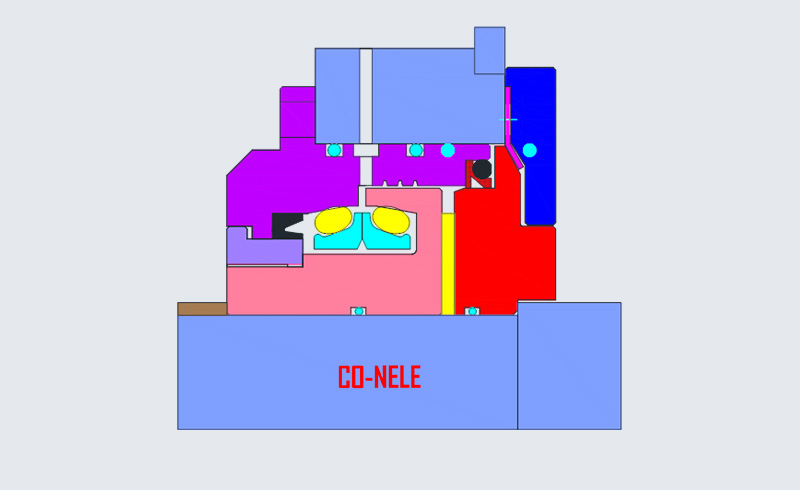

Shaft sealing

adopt floating seal ring and labyrinth seal structure of mechanical seal,can prevent sand or stone into the seal;   There is protection board in the mechanical seal,maintain stability of the oil pressure.The cement water is not close to the shaft head.Prolong the service life of the seal.   integral assembly,easy to remove and replace.

1000l Twin Shaft Concrete Mixer

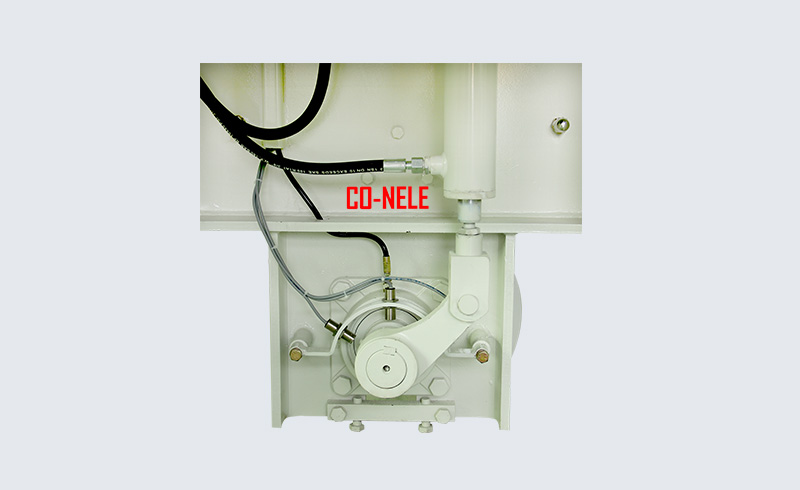

Belt self-tensioning device & Eccentric discharge door

avoid belt abnormal wear and damage;   reduce maintenance costs.   Eccentric discharge door,modular design,reliable sealing,wear small;   Durable and reliable limit switch.

Horizontal shaft concrete mixer discharge door

Shaft Bearing & Gearbox

  Shaft bearing and sealing are separate.Can protect the bearing when the sealing is broken.Easy to replace.   Stable transmission,low noise,long service life,no oil leakage .

CSS60 Laboratory concrete mixer

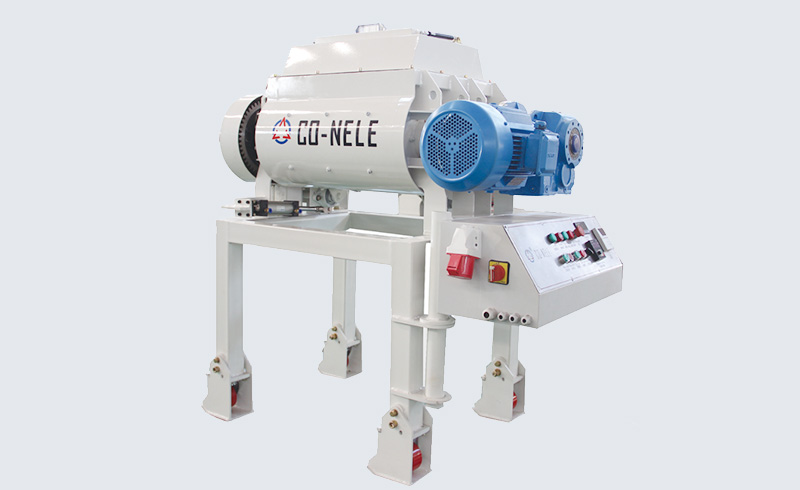

Laboratory Twin Shaft Concrete Mixer

   Small footprint,easy to move and resettlement.   The agitator design is unique can install and disassemble easily and quickly   The shaft sealing is composed of floating oil seal ring and mechanical seal ensure reliable work,longer service life,and easy to disassemble and replace;   Frequency conversion control system,intuitive operation,accurate and reliable experimental data   Rich configuration,with pneumatic and manual discharge functions .

Productivity

Type

CSS60

CSS90

CSS150

CHS1000

CHS1250

CHS1500

CHS2000

CHS3000

CHS4000

CHS5000

In capacity(L)

90

130

225

1500

1875

2250

3000

4000

6000

7500

Out capacity(L)

60

90

25

1000

1250

1500

2000

3000

4000

5000

Mixing power(Kw)

4

5.5

7.5

37

22X2

30X2

37X2

55X2

75X2

90X2

Paddle

5x2

6X2

6X2

2X5

2X5

2X6

2X6

2X8

2X9

2X11


Watch The Video

CHS3000 Large twin-shaft concrete mixer detail CHS3000 Large twin-shaft concrete mixer detail
CHS twin shaft concrete mixer details CHS twin shaft concrete mixer details

Projects

CQM1000 Intensive mixer for refractory in South...

Intensive Mixer for Steel Plant in Korea...

CQM750 Honeycomb Ceramic Production Line in Eur...

Industry

Friction material

Foundry sand

Glass

Metallurgy

Refractory
