CO-NELE 150L High-Shear Mixing Granulator for Alumina Granulation

2026.4.16 | CO-NELE

Project Background
In the field of high-end ceramic materials, alumina is widely utilized in refractories, electronic ceramics, and ceramic components for lithium-ion batteries due to its exceptional high-temperature resistance, electrical insulation properties, and mechanical strength. However, practical applications of alumina powder impose extremely stringent requirements regarding particle uniformity, sphericity, and particle size control—presenting a formidable challenge for granulation equipment.
Traditional granulation processes typically suffer from the following issues:
Non-uniform particle size distribution, making it difficult to maintain within a 1mm range.
Low granulation yield (spherization rate), negatively impacting the quality of subsequent sintering processes.
Lack of process visibility, resulting in an absence of real-time monitoring capabilities.
To address these critical pain points, the client adopted the CO-NELE CRV09 150L High-Shear Mixing Granulator.

Equipment Solution
Integrated, High-Efficiency Granulation System

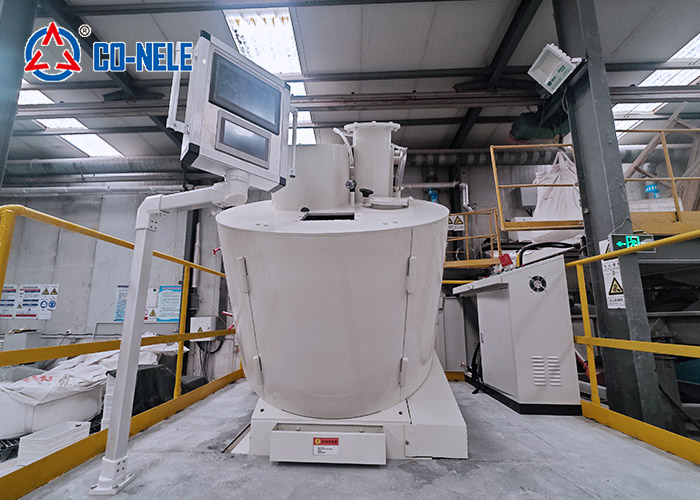

The CRV09 150L Alumina Granulator integrates the following core processes:
* Mixing
* Nucleation
* Densification
Through a combination of high-speed shearing and an optimized structural design, the system enables the rapid and uniform granulation of powder within a short timeframe, thereby significantly boosting production efficiency.

Core Technological Advantages
1. High-Precision Particle Control

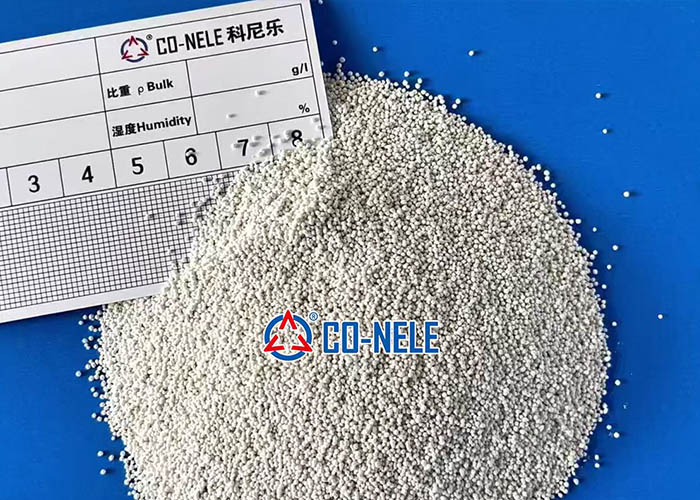

Achieves precise particle size control within the 1mm range.
Ensures uniform particle distribution, meeting the rigorous requirements of high-end ceramic manufacturing processes.
2. Ultra-High Granulation Yield
Granulation rate (spherization rate) ≥ 98%.
Significantly reduces the need for rework and minimizes raw material waste.
3. High-Sphericity Particles
Enhances powder flowability and packing density.
Optimizes performance during subsequent sintering stages.
4. Visualized Intelligent Monitoring
Equipped with a panoramic viewing window.
Enables real-time, online monitoring of the granulation process.
Improves process controllability and stability.
Application Results
In the alumina granulation project, the CO-NELE CRV09 150L High-Shear Mixing Granulator achieved the following results:
✅ Particle size consistently maintained within the 1mm range.
✅ Product consistency significantly improved.
✅ Production cycle time reduced by approximately 30%.
✅ Reduced reliance on manual intervention, resulting in a higher level of automation.
Client feedback indicates that the equipment performs stably during continuous production runs, leading to a substantial improvement in overall production efficiency and product quality. Typical Application Fields
This high-shear mixing granulator is widely applicable to:

Refractory materials
Electronic ceramics
Ceramic materials for lithium-ion batteries

Conclusion
The CO-NELE CRV09 150L high-shear mixing granulator successfully resolves critical challenges in the precision granulation of alumina through the integration of advanced granulation technology and a visual monitoring system. Its high granulation yield, exceptional uniformity, and intelligent control capabilities make it an ideal piece of equipment for the production of high-end ceramic materials.
