UHPC (Ultra-High Performance Concrete) Mixer Features
UHPC (Ultra-High Performance Concrete) and mixers used in its production. UHPC is a specialized type of concrete known for its exceptional strength, durability, and resistance to environmental factors. Mixing UHPC requires precise equipment and techniques due to its unique composition and properties.

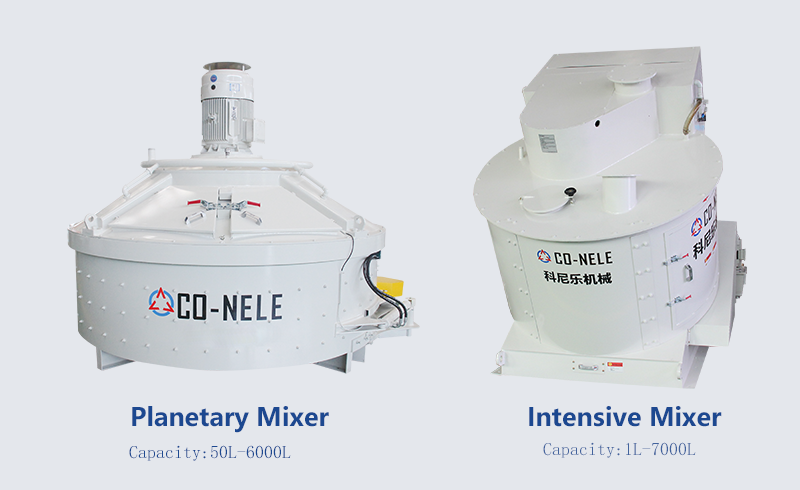

CMP Planetary Mixer & CO-NELE Intensive Mixers High Uniformity Of Mixing, No Dead Corners In Mixing. Intensive mixer combines rotating pan and counter-rotating blades for homogeneous UHPC. Planetary mixer the revolution and rotation speed of the blades .

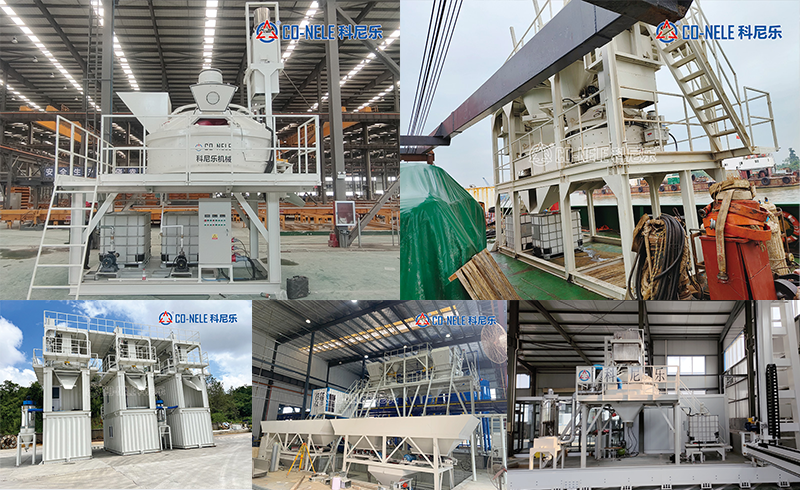

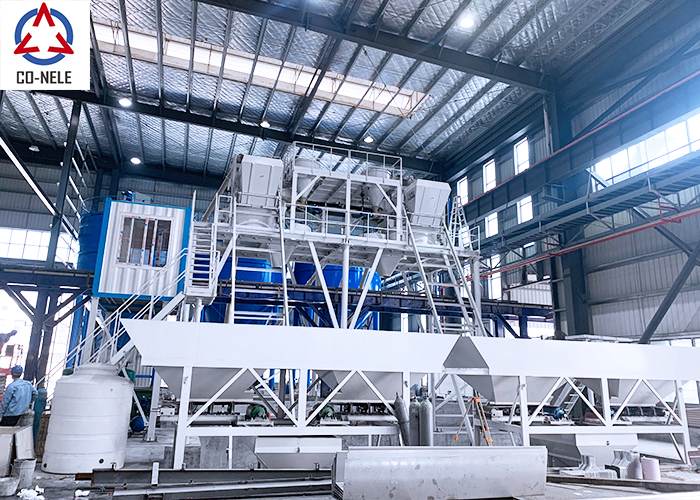

Precast concrete elements (e.g., bridge components, façade panels). Repair and rehabilitation of structures. Architectural and decorative elements. High-strength structural components.
Dry Mixing: Blend cement, silica fume, and quartz flour first (1–2 mins). Add Liquids: Slowly introduce water and superplasticizers while mixing. Fiber Addition: Add fibers gradually to avoid clumping (use vibration if needed). Final Mixing: High-speed shear for 5–10 mins until homogeneous .
Mixing Time and Speed: UHPC mixing is typically longer and at higher speeds compared to conventional concrete to achieve homogeneity. Overmixing should be avoided to prevent fiber damage (if fibers are included). Material Handling: UHPC contains very fine materials (e.g., cement, silica fume, quartz powder), so mixers must be dust-tight and capable of handling fine powders. Fiber Incorporation: UHPC includes steel or synthetic fibers, the mixer must evenly distribute them without clumping or breaking.

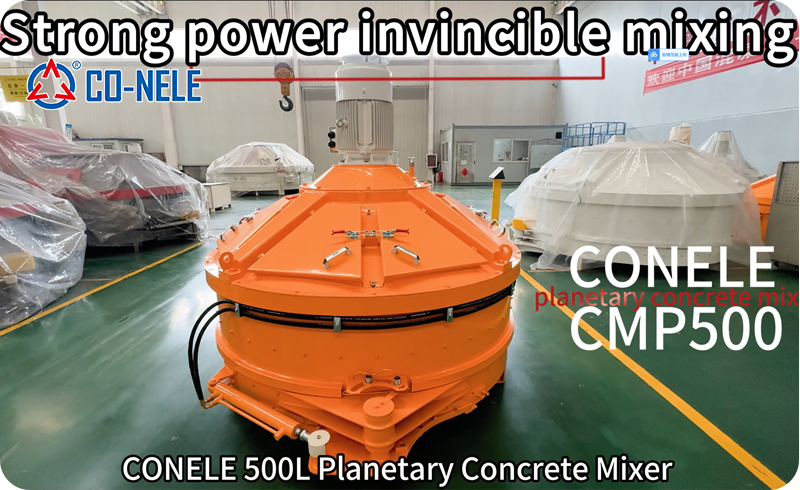

Type | CMP50 | CMP100 | CMP150 | CMP250 | CMP330 | CMP500 | CMP750 | CMP1000 |
Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 |
Input capacity(L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 |
Output weight(Kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 |
Mixing power(Kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 |
Dischar ging power(Kw) | Pneumatic discharge(optional hydraulic) | |||||||
Planet/mixing arm | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | |||
Paddle(nr) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
DIscharging paddle(nr) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Weight(Kw) | 700 | 1100 | 1300 | 1500 | 2000 | 2400 | 3900 | 6200 |
Ligting power(Kw) | - | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 | 11 |
Dimension(LxWxH,MM) | 950x790x1200 | 1670x1460x1450 | 1670x1460x1620 | 1860x1650x1780 | 1870x1870x1855 | 2230x2080x1880 | 2580x2340x2195 | 2890x2602x2220 |
Type | CMP1250 | CMP1500 | CMP2000 | CMP2500 | CMP3000 | CMP4000 | CMP4500 | CMP5000 |
Output capacity(L) | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 | 5000 |
Input capacity(L) | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | 7500 |
Output weight(Kg) | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | 12000 |
Mixing power(Kw) | 45 | 55 | 75 | 90 | 110 | 160 | 200 | 250 |
Dischar ging power(Kw) | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 |
Planet/mixing arm | 2/4 | 2/4 | 3/6 | 3/6 | 3/9 | 3/9 | 3/9 | 3/9 |
Paddle(nr) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
DIscharging paddle(nr) | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
Weight(Kw) | 6700 | 7700 | 9500 | 11000 | 12000 | 16500 | 17500 | 18500 |
Ligting power(Kw) | 15 | 15 | 22 | 30 | 37 | - | - | - |
Dimension(LxWxH,MM) | 3060x2760x2305 | 3230x2902x2470 | 3625x3230x2630 | 3900x3550x2695 | 3900x3550x2975 | 4560x4150x3105 | 4560x4150x3305 | 4560x4150x3305 |

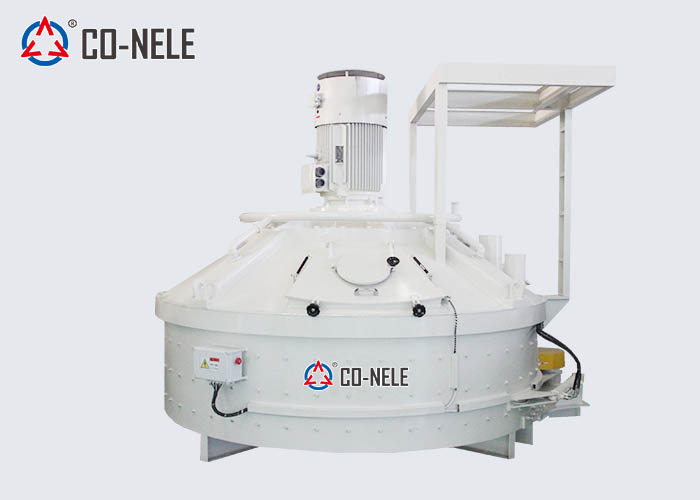

CO-NELE planetary UHPC concrete mixer is conven...
